Ladle Preheater

• Completely indigenised components
• High pressure - no back pressure no smoke- ladle completely closed by lid
• Gas train for gas control
• Stainless steel lid with ceramic module lining
• Motorised/hydraulic up down, tilting, swinging motion
• High heat resistant burner
• Temperature measurement & control
• Nozzle, Electrode etc. easily cleaned
• Continuous flame monitoring
• Auto Ignition
• Fully automated unit
• PLC control (optional)

Innovations

• Ladle Drying and Preheating.

• Ladle Preheating Systems are custom designed and manufactured by Dhanaprakash.

• More than 250 installations in India and abroad.

• Any Ladle, Any Fuel, Any Position, Any Metal - PLC programmable systems.

• Quick, Smokeless, Energy Efficient.

• Recipient of G S Parkhe Award of MCCI in 1997.

Concept

• Ladle completely covered by insulated Lid - No Heat Loss.

• Ladle bottom temperature is Higher than top.

• Auto Ignition, Fuel & Air on/off, temperature sensor for control.
• Instant preheating to 1000⁰C.
• Waste Heat Recuperator preheats Combustion Air.

• All ladles of foundry single Preheater.

• Motions, Air, Fuel supply automated with interlocks.
• Single fuel or Dual fuel.

Various Type

• Small Ladle Preheater - 50 to 250 Kg.

• Universal Ladle Preheater - 500 to 2000 Kg.

• All-round Ladle Preheater - 100 to 2000 Kg.

• Giant Ladle Preheater - 10 MT & Above.

• Scrap Preheater - Scrap preheated in Ladle before feeding induction furnace.

• Induction Furnace Removable Former Sintering.

• Customized Shape Ladle Preheater.
• Induction furnace removable former Sintering

Downnload Brochures

• Automated Ladle Preheating System
• Forging Industry

Ladle Preheater - Video Gallery

•

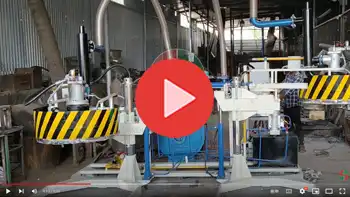

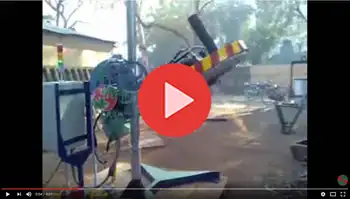

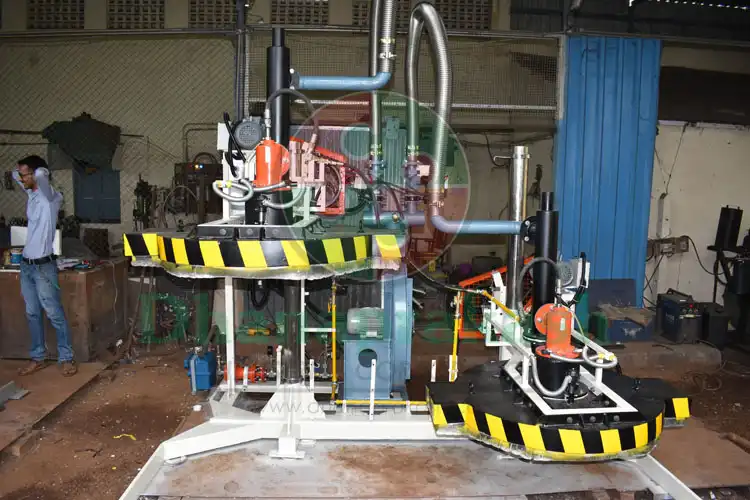

  PLC Controlled Multi ladle preheating station- Tilting, Swinging
•
  LADLE PREHEATER
•
  Automatic Ladle Preheater
•

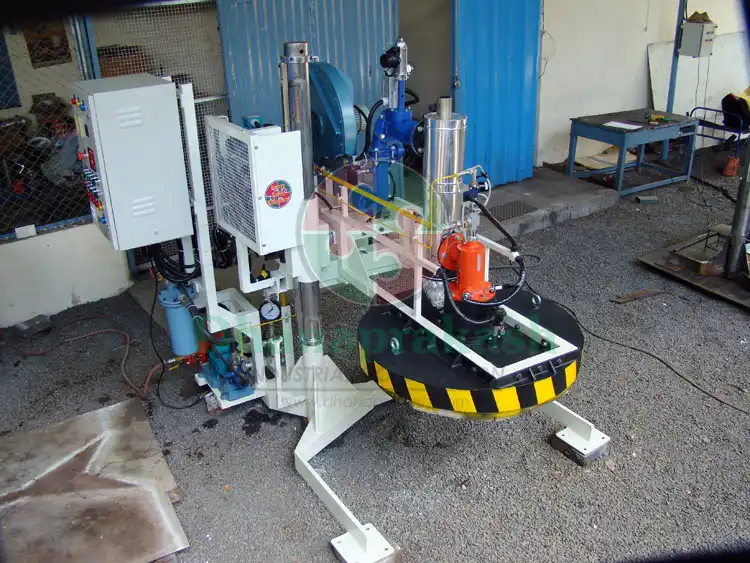

  Instant Ladle Preheater in Action
•

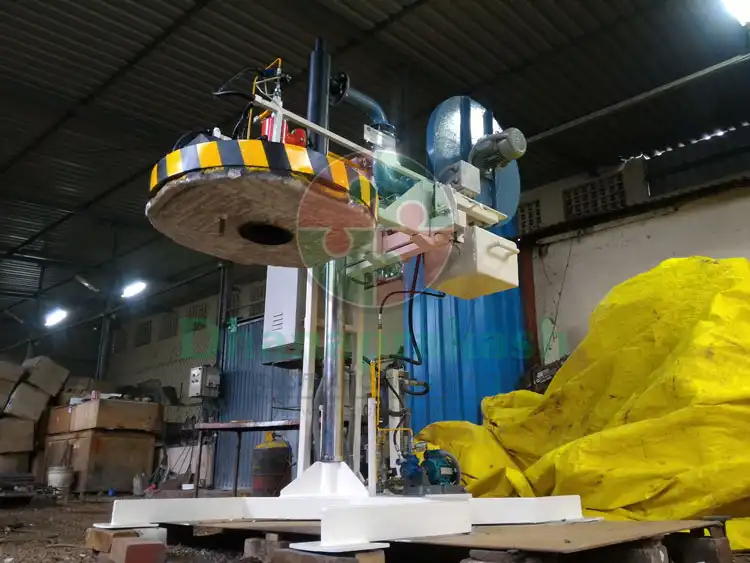

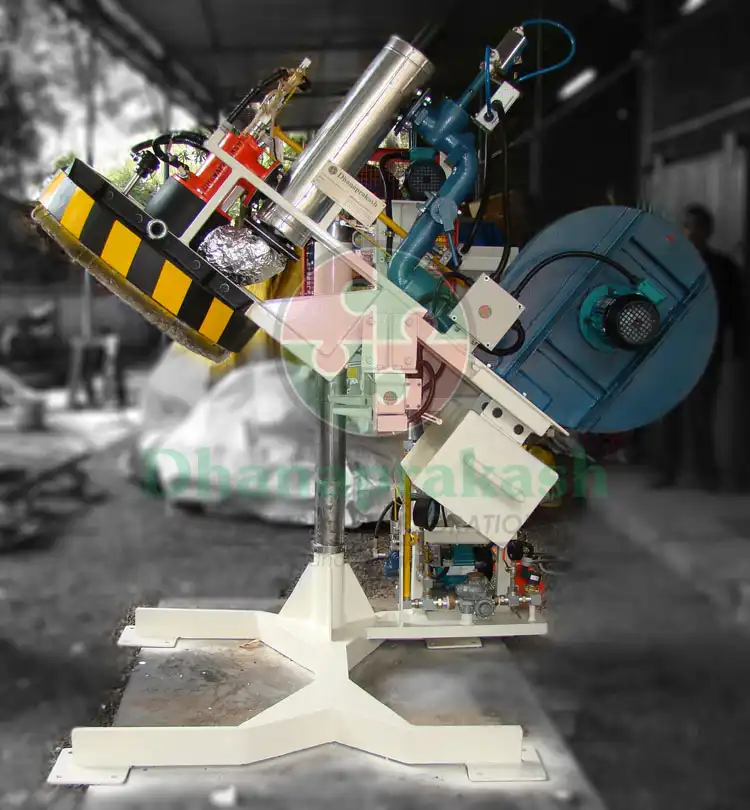

  Instant Ladle Preheater with Tilting Mechanism
•

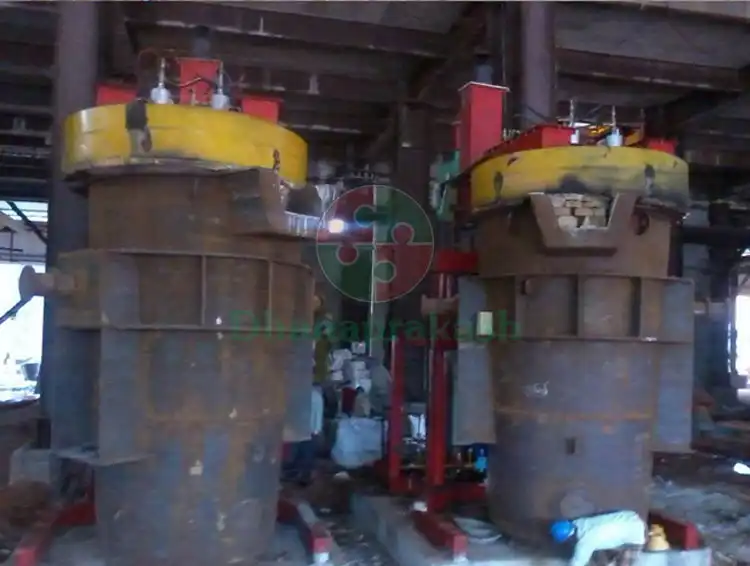

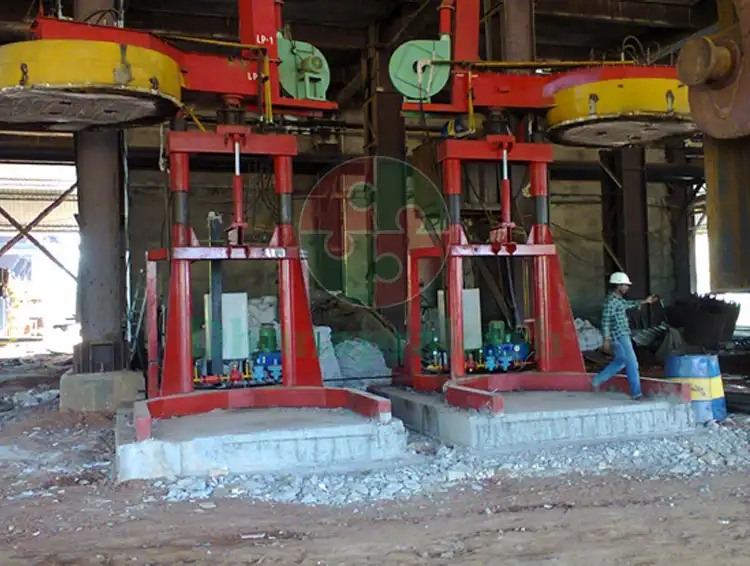

  Fully Automated Giant Ladle Preheater
